Description

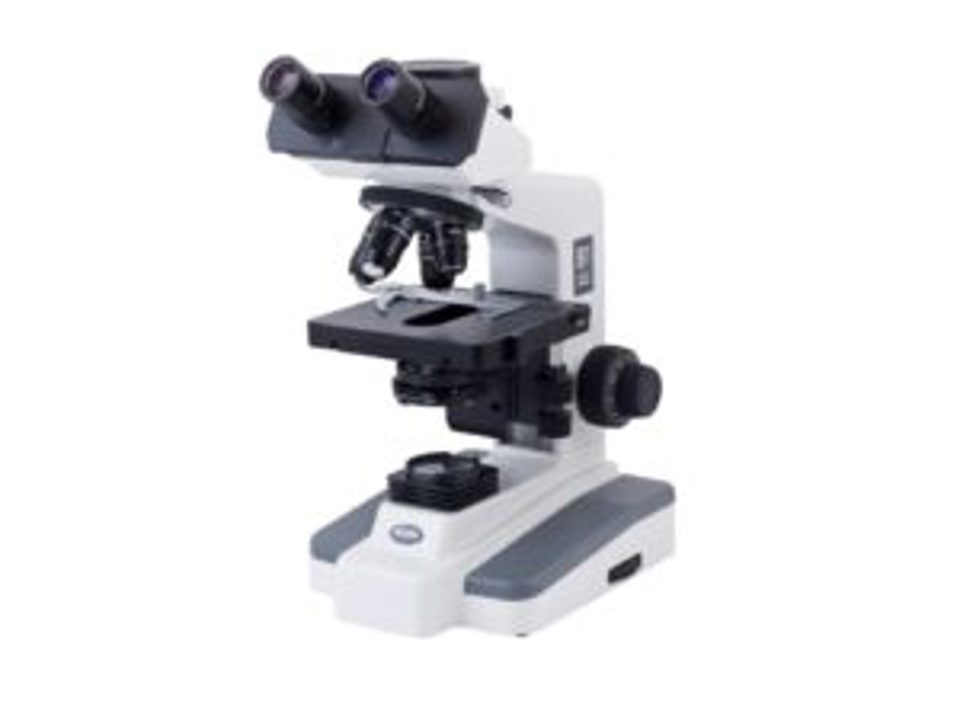

The i4 modular series microscope features exceptional optical quality and expandability for top-notch performance in the lab. Use the rotating head to adjust the height for taller users. Infinity Plan and Semi-Plan optics with a 30-year anti-fungal coating match quality with value within any clinic’s budget. With cool, long-life LED illumination, the i4 Infinity microscope is the perfect choice for durability, dependability, and superior imaging in the laboratory.
HEAD
Binocular (Seidentopf), Trinoc available
Digital cameras and adapters available
Diopter adjustment
Inclined 30°, rotates 360°
10X/18 WF Eyepieces
(10X/20X Super WF HP eyepieces available)
Interpupillary distance range 48-75mm
NOSEPIECE
Reverse quadruple nosepiece
Multiple ball bearing mounted
OBJECTIVE
Infinity Semi-Plan or Plan objectives
4X, 10X, 40XR, 100XR (oil)
50X (oil) objective is also available
Anti-fungal, parfocal, parcentric, color-coded
STAGE
Mechanical stage (133mm x 143mm)
Coaxial drive controls, metal rack & pinion
Range of traverse: 78mm x 50mm
Stage locking lever
Slow-close hydraulic slide finger
FOCUS
Coarse adjustment: range of 15mm
Fine adjustment: graduation of 2μm
Tension control knob
ILLUMINATION
Moveable Abbe condenser, NA 1.25
Iris Diaphram
LED “daylight” long-life light source
Variable light adjustment
100-240V / 50-60Hz automatic-switching electronics
3-prong UL-listed power cord
Medical-Grade Microscope
Anti-Fungal Coating on All Lenses
LED “daylight” long life illumination
OPTIONS
Phase contrast, 50x oil objective, camera
attachments, eyepiece pointer, and more.
WEIGHT AND DIMS
Height: 14.1” (352.5 mm)
Length: 10.7” (267.5 mm)
Width: 6.1” (152.5 mm)
Weight: Binoc: 16.0 lbs. (7.26 kg)
Trinoc: 16.6 lbs. (7.53 kg)
