Description

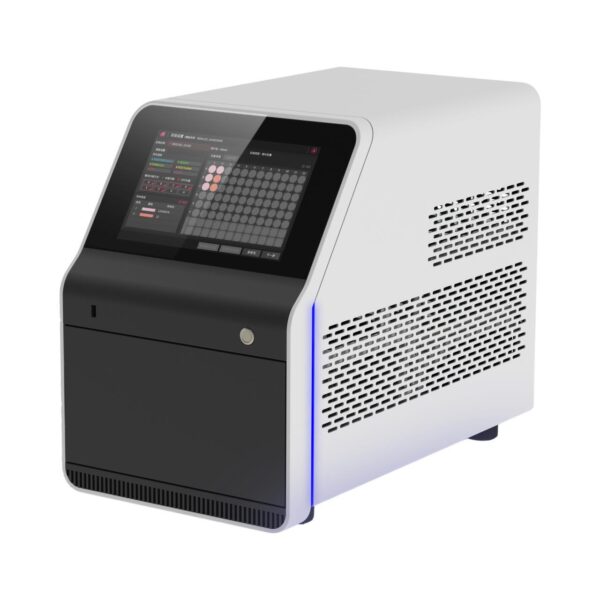

960406 Real-time PCR is a 96 well quantitative fluorescence Real-time PCR System, equipped with a 10.1-inch high-definition color touch screen and built-in analysis software for intuitive operation and analysis. Combining the innovative thermal cycling system, accurate photoelectric detection system and intuitive software, the real-time PCR delivers precise and reproducible experimental results. The device also has two temperature control modes settings which enables you to control either block or tube temperatures.
Specifications:
- Model: 960406
- Throughput: 96 well (12 × 8)
- Applicable consumables: PCR single tube and strip of 0.2 ml, 96-well half skirted / no skirted plate; PCR single tube and strip of 0.1 ml, 96-well no skirted plate
- Dynamic range: 1-10 copies
- Detection location: Top detection
- Excitation light wavelength: 400-800nm
- Detection wavelength: 500-800nm
- Fluorescence channels: 6 channels
- Fluorochrome/dye: Channel 1: FAM/SYBR Green I, Channel 2: JOE/HEX/TET/VIC, Channel 3: NED/TAMRA/Cy3, Channel 4: ROX/Texas Red, Channel 5: Cy5, Channel 6: Cy5.5
- Excitation light source: full-spectrum LED
- Detector: PMT
- Block temp. range: 4~105°C
- Block temp. accuracy: ≤±0.1°C
- Block temp. precision: ≤±0.1°C
- Block temp. uniformity: ≤±0.1°C
- Max heating & cooling rate of block: ≥6°C/s
- Gradient temp. difference: 1-40°C
- Block temp. control mode: Block mode, Tube mode
- Sample volume range: 5-100μL
- Heated lid temp. range: 30°C-110°C (default 105°C)
- Fluorescence intensity: CV≤3%
- Touch screen: Yes, 10.1-inch touch screen
- Scan mode: Full plate scan or specified line scan
- Software functions: Absolute quantification, Relative quantification, Melting curve, SNP genotyping, HRM, Quick run, etc.
- Operating system: PC software (Windows 8 or higher), Built-in software
- Ports: USB Type-A port × 2, USB Type-B port, RJ45 port
- Power-off protection function: YES, data can be restored after power-on
- Sample tray control mode: Sample tray automatically moves in/out, enabling integration with automated workstations/plate handlers.
- Dimension (WxDxH): 320mm x 525mm x 420mm
- Net weight: ≤23kg
- Thermal Cycling Technology: Peltier Module
- Memory: 8GB
