Description

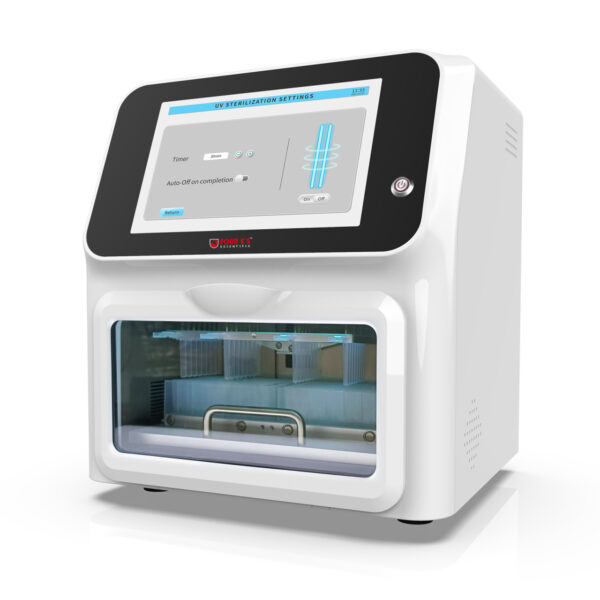

MultiEX series products offer automated nucleic acid extraction and purification using Magnetic Bead separation. The MultiEX 032 system can meet your common nucleic acid extraction needs, with the capacity to process 32 samples per run. Using Magnetic Bead Separation technology, the MultiEX series extractors are capable of extracting and purifying nucleic acids from a variety of biological samples, such as whole blood, viruses, tissues, plants, animals, fungi, bacteria, cultured cells, swabs, feces, blood cards, etc. The system comes with a user-friendly touch screen interface allowing the user to easily set purification parameters. The automated system integrates all the purification phases including binding, mixing, washing, and elution, and delivers high-efficiency, high-quality purification. The system works with any prefilled magnetic bead-based reagent kit.
Specifications:
- Model: MultiEX 032
- Processing volume: 50-1000μL
- Throughput: 1-32 samples
- Plate quantity: 2
- Plate type: 96-well deep-well plate
- Processing time: 20min-40min/run (depending on reagent types and volumes)
- Reagent type: Magnetic bead-based reagent kits (open system)
- Program management: Create, Edit and Delete options available
- Heating temperature: 37°C-125°C
- Mixing intensities: Adjustable:8 Levels
- Maximum Stirring Speed: 10Hz
- Magnetic beads recovery rate: 98%
- Inter-well purification variance: CV<3%
- Noise: <55db
- Data storage capacity: >500 programs
- Dimension: 349mm*325mm*390mm
- Display: 10-inch color touchscreen
- Lighting: YES
- Contamination Control: UV light
- Power supply: 100-240VAC, 50/60Hz
- Weight: 25KG
- Extension ports: 2 USB ports, 1 Ethernet Port
