Description

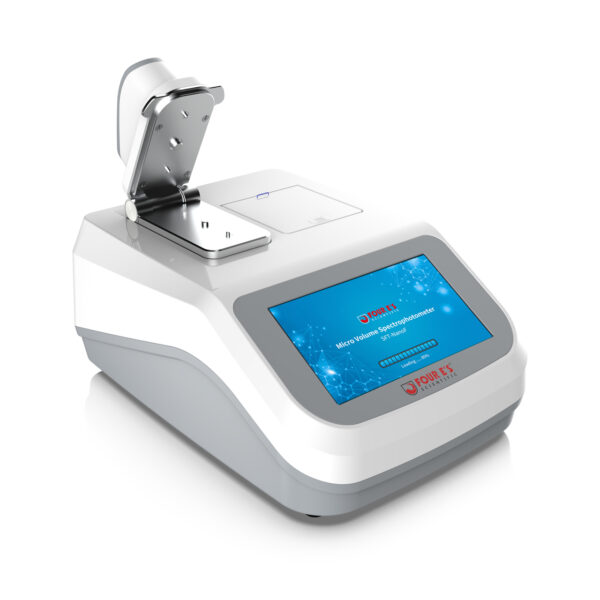

The Microvolume spectrophotometer (UV-Vis) with a built-in 7-inch color touch screen can perform all detection functions without connecting to a computer. The device has a full spectral range (190-800nm) for accurate quantitative analysis of DNA, RNA, proteins, etc. It comes with an intuitive user interface for easy operation.
The instrument requires only 0.5-2μl micro-volume samples for accurate and reproducible measurements and can detect high concentration samples without dilution. The Xenon flash lamp light source ensures that the device is ready for immediate use without any warm-up time and provides high stability and a long operating life.
Specifications:
- Model: SPT-Nano
- Wavelength range: 190-800nm
- Minimum sample size: 0.5 ~ 2μL
- Path length: 0.05mm (high concentration)/0.2mm (high concentration) 1mm (normal concentration)
- Light source: Xenon flash lamp
- Detector type: 2048px, CMOS
- Wavelength accuracy: 1nm
- Spectral resolution: ≤3nm
- Absorbance precision: 0.003Abs
- Absorbance accuracy: 1% (4.096A at 260nm)
- Absorbance Range: 0.04 ~ 300A
- Lower Limit of Detection: 2 ng/uL(dsDNA) / 0.06 mg/mL(BSA)
- Maximum Concentration: 15,000 ng/uL(dsDNA) / 440 mg/mL(BSA)
- Sample pedestal material: Aluminum alloy and Quartz fiber
- Power supply: AC100V-240V, 50Hz/60Hz (power adapter)
- Operating power: 48W
- Standby power: 8W
- Software: Android
- Data Output: USB 2.0, built-in printer
OD600nm Measurement
- Sample Holder Type: Cuvette
- Cuvette Dimensions: 12.5×12.5x45mm; Z-Height: 8.5mm
- Light source: LED
- Wavelength range: 600±8nm
- Absorbance range: 0 ~ 4A
Fluorescence detection
- Sample Holder Type: –
- Excitation filters: –
- Emission filters: –
- Limit of detection: –
- Linear dynamic range: –
- Repeatability: –
Dimensions and Weight
- Dimension (W x D x H): 318x220x205mm
- Weight: 4.1kg
