Description

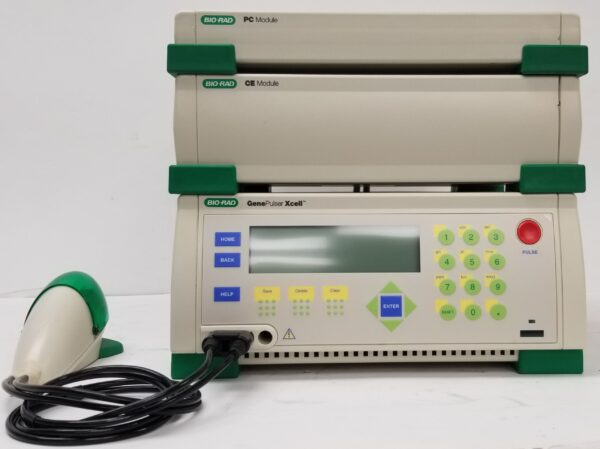

The Gene Pulser Xcell System is a flexible, modular electroporation system for transfecting every cell type from primary, suspension, and difficult-to-transfect cells, including T cells, to bacteria and fungi. The system is composed of a main unit, two accessory modules, the capacitance extender (CE module) and the pulse controller (PC module), and a ShockPod cuvette chamber.
Specifications:
- Waveform Output: Exponential or square
- Voltage Range:
- Main Unit & Microbial System: 200–3,000 V
- Eukaryotic System: 10–3,000 V
- Capacitance:
-
- 10–500 V: 25–3,275 µF (25 µF increments)
- 500–3,000 V: 10, 25, 50 µF
-
- Parallel Resistance: 50–1,000 Ω (50 Ω increments) + infinity (not in eukaryotic system)
- Sample Resistance:
-
- 20 Ω minimum at 10–2,500 V (or 200–2,500 V in microbial system)
- 600 Ω minimum at 2,500–3,000 V
-
- Square-Wave Pulse Timing:
-
- 10–500 V: 0.05–10 ms (0.05 ms increments), 10–100 ms (1 ms increments), 1–10 pulses, 0.1–10 s interval
- 500–3,000 V: 0.05–5 ms (0.05 ms increments), 1–2 pulses, 5 s minimum interval
-
- Power Input: 100–120 VAC or 220–240 VAC, 50/60 Hz
- Power Consumption: Max. 240 W (during charging)
- Operating Conditions: 0–35°C; 0–95% RH (noncondensing)
- Regulatory Compliance:
-
- Safety: EN 61010
- EMC: EN 61326 Class A
-
- Dimensions:
-
- Main Unit: 31 x 30 x 14 cm
- CE Module: 31 x 28 x 9 cm
- PC Module: 31 x 28 x 5 cm
-
- Weight:
-
- Main Unit: 6.6 kg
- CE Module: 3.1 kg
- PC Module: 1.9 kg
-
