Description

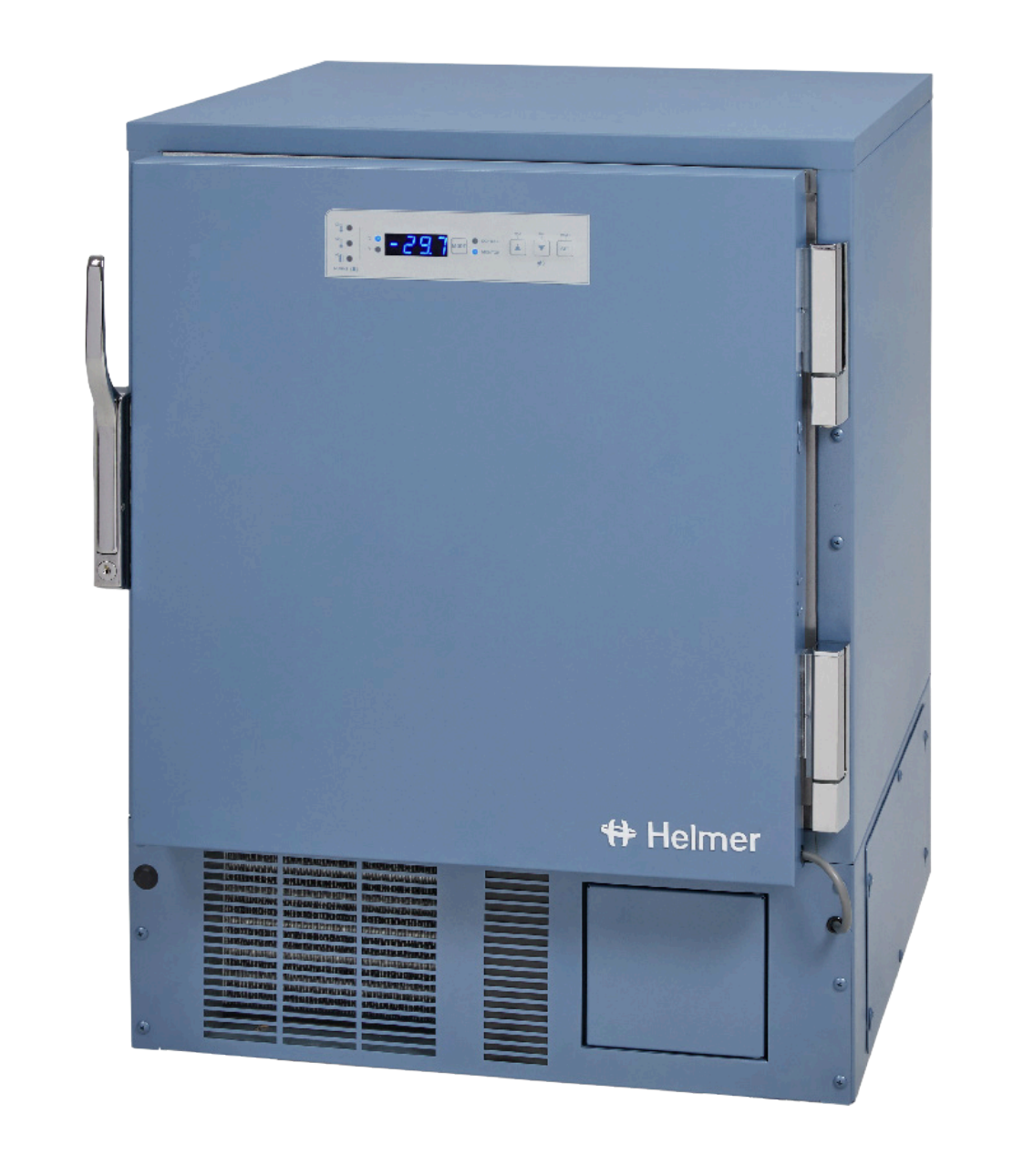

The HLF105-GX from Helmer Scientific is a high-performance, ENERGY STAR certified undercounter freezer designed for critical storage of temperature-sensitive medical and scientific materials. With a compact footprint that fits under standard ADA-compliant countertops, it offers precise microprocessor control, rapid recovery, and quiet operation. The VCC compressor-based refrigeration system with R290 refrigerant ensures sustainable, efficient performance, while advanced alarms and security features safeguard valuable contents. Ideal for healthcare and research environments, this freezer delivers dependable, space-efficient cold storage.
Specifications:
- Application: High-performance storage of medical and scientific products
- Storage Volume: 5.3 cu ft (150 L)
- Temperature Range: -15°C to -30°C
- Temperature Set Point: -30°C
- Power Supply: 115V 60Hz | 220–240V 50/60Hz
- Maximum Current: 4.1A (115V) | 2.0A (220–240V)
- Energy Efficiency: ENERGY STAR® Certified
- ADA Compliant: Yes
- Ambient Operating Temperature: +15°C to +32°C
- Refrigeration System: VCC compressor-based, forced-air hydrocarbon
- Compressor Type: Hermetic, variable speed (1600–4000 rpm)
- Refrigerant: R290 (Propane), EU F-Gas and EPA SNAP compliant
- Defrost Method: Automatic
- User Interface: LED digital display (°C or °F)
- Controller Type: Microprocessor with alarms and monitoring
- Security: Lockable door, optional PIN access control
- Alarms: Power failure, high/low temperature, door ajar, min/max temperature
- Temperature Uniformity: ±2.0°C
- Temperature Stability: 0.1°C
- Recovery Time to -29.5°C After 1-Min Door Opening: 23 minutes
- Pull-down Time to -30°C: 70 minutes
- Energy Consumption: 3.82 kWh/day
- Noise Level: 46 dB
- Heat Rejection: 1701 BTU/hr
- Interior Dimensions (W x H x D): 496 x 505 x 580 mm
- Exterior Dimensions (W x H x D): 610 x 798 x 678 mm
- Overall Dimensions (W x H x D): 617 x 809 x 721 mm
- Shelving: 2 ventilated, adjustable shelves (454 x 541 mm, 100 lb capacity each)
- Door: Solid, field-reversible
- Construction: Bacteria-resistant powder-coated interior/exterior
- Access Ports: Rear (0.75 in diameter)
- Weight: 179 lb (82 kg) net | 240 lb (110 kg) shipping
- Ventilation Clearance: Minimum 3” (76 mm) rear clearance, front ventilation
