Description

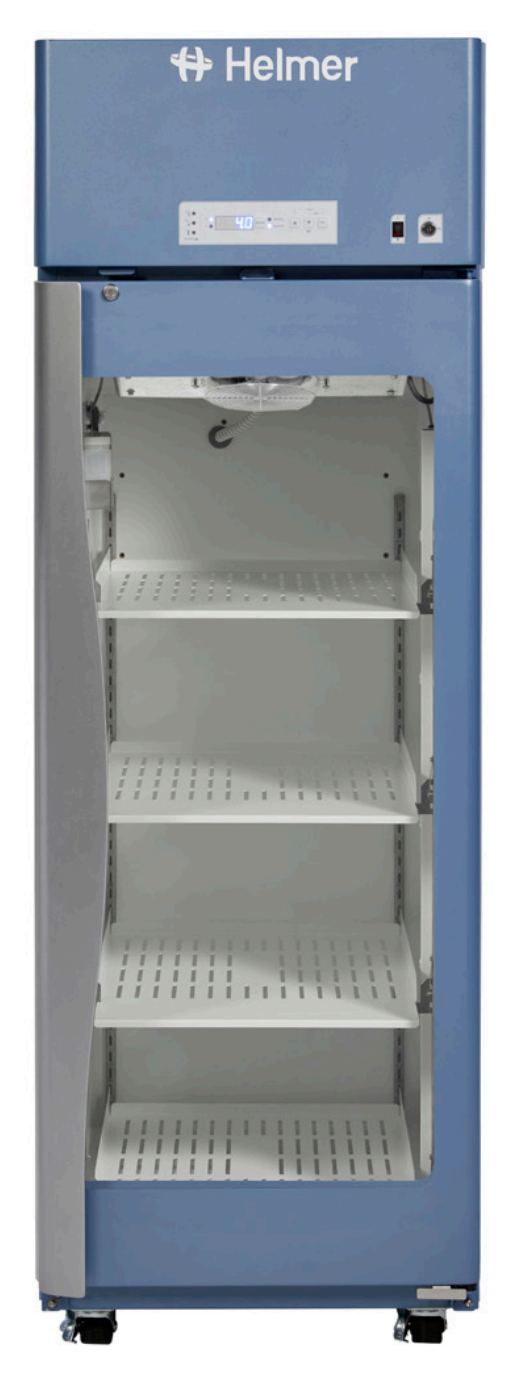

The HLR113-GX is a high-performance, ENERGY STAR certified upright laboratory refrigerator designed for the reliable storage of medical and scientific products. Built by Helmer Scientific, this unit offers precise temperature control, industry-leading uniformity and stability, and robust safety features. With a variable speed compressor and advanced microprocessor control, it ensures consistent performance even during frequent access. Ideal for clinical labs, research facilities, and vaccine storage, the HLR113-GX is engineered for efficiency, safety, and ease of use.
Specifications:
- Application: High-performance storage of medical and scientific products
- Storage Volume: 13.3 cu ft (377 L)
- Temperature Range: +2°C to +10°C
- Temperature Set Point: +4°C
- Power Supply: 115V 60Hz | 220-240V 50/60Hz
- Maximum Current: 2.3A (115V) | 1.12A (220–240V)
- Ambient Operating Temperature: +15°C to +32°C
- Refrigeration System: VCC compressor-based, forced-air hydrocarbon
- Compressor Type: Hermetic, variable speed (1300–4000 rpm)
- Refrigerant: R600a (Isobutane), EPA SNAP compliant
- Defrost Method: Automatic
- User Interface: LED digital display, °C or °F
- Controller Type: Microprocessor with alarm/monitor
- Temperature Uniformity: ±1.0°C
- Temperature Stability: 0.68°C
- Energy Consumption: 2.47 kWh/day
- Noise Emission: 39 dB
- Heat Rejection: 751 BTU/hr
- Pull-down Time to 4°C: 49 minutes
- Recovery Time to 8°C after 3 min Door Opening: 12 minutes
- Security: Lockable door, optional PIN access
- Alarms: Power failure, high/low temperature, door ajar, min/max temp
- Interior Dimensions (W x H x D): 508 x 1255 x 583 mm
- Exterior Dimensions (W x H x D): 628 x 1790 x 663 mm
- Overall Exterior Dimensions (W x H x D): 631 x 1790 x 792 mm
- Shelving: 4 ventilated, adjustable shelves (454 x 541 mm, 100 lb max per shelf)
- Weight: 306 lb (139 kg) net | 373 lb (169 kg) shipping
- Construction: Bacteria-resistant powder-coated finish, dual-pane glass door
