Description

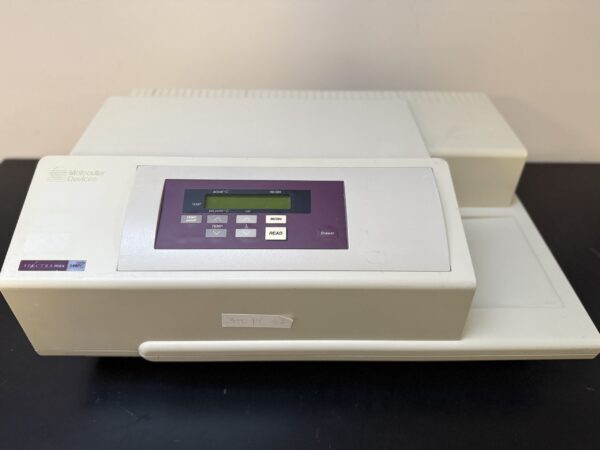

The SpectraMax 340PC384 Reader from Molecular Devices provides everything needed to measure absorbance in the visible range, including temperature control, a robotics-compatible interface and SoftMax Pro Data Acquisition and Analysis Software.
Specifications:
Photometric Performance
- Wavelength range: 340-850 nm
- Wavelength selection: Monochromator, tunable in 1 nm increments
- Wavelength bandwidth: 2 nm
- Wavelength accuracy: ±1 nm
- Wavelength repeatability: ±0.2 nm
- Photometric range: 0 to 4.000 OD
- Photometric accuracy: ≤ ±0.006 OD ±1.0%, 0–2 OD
- Photometric precision: ≤ ±0.003 OD ±1.0%, 0–2 OD
- PathCheck sensor measurement error: < 5% when compared to a 1 cm
- Cuvette
Microplate Read Time (Single Wavelength)
- Endpoint: 96 wells in 9 seconds, 384 wells in 29 seconds
- Minimum kinetic interval: 96 wells in 9 seconds, 384 wells in 29 seconds
Temperature regulation
- Temperature range: Ambient + 4°C to 45°C
General Specifications
- Dimensions (in.): 8.6 (H) x 22.8 (W) x 15 (D)
- Dimensions (cm): 22 (H) x 58 (W) x 38 (D)
- Weight: 30 lbs. 13.6 kg)
- Power consumption: <250 watts
- Power source: 100-240 Vac, 4 A, 50/60 Hz
- Robot compatible: Yes
