Description

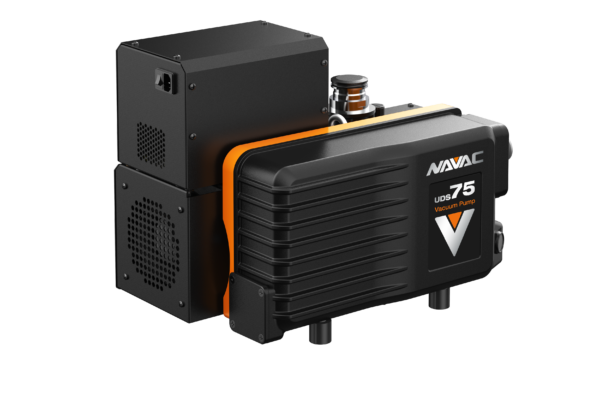

UniDrive LC-MS is a single-stage, oil-sealed rotary vane vacuum pump optimized for Liquid Chromatography–Mass Spectrometry (LC-MS). Designed to complement your LC-MS system, the UniDrive LC-MS offers a compact design as well as noise reduction—optimal for laboratory environments.
Optimal for Laboratory: Designed with quiet operation in mind, these pumps are ideal for low-noise environments and perfect for laboratory use
Integrated Oil Mist Filter: High-efficiency oil mist filters prevent oil vapor from exhausting into the equipment space and smoking while also prolonging the service life
Gas Ballast: Adjustable gas ballast allows for the different requirements of condensable gas to be exhausted
Technical Specification
Pumping Speed (60Hz): 70 m³/h (41 CFM)
Ultimate Pressure: ≤0.15 mbar (0.11 Torr)
Power Supply: 1ph, 220V 60Hz
Power Rating: 1.5 kW
Motor Speed: 1800 rpm
Inlet/Outlet: KF40 / KF25
Oil Capacity: 2.5 L
IP Rating: IP20
Noise Level: ≤65 dB
Weight: 54.98 kg (121.2 lbs)
Dimensions (L×W×H): 546 × 322.6 × 370.8 mm (21.5 × 12.7 × 14.6 in)
