Description

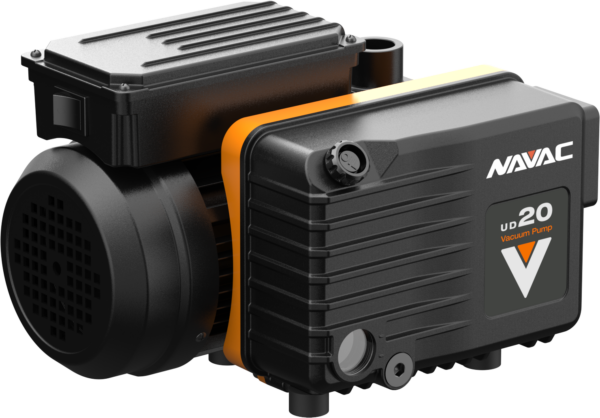

UniDrive is a single-stage, oil-sealed rotary vane vacuum pump optimized for applications with high moisture content. Engineered with performance in mind, UniDrive offers unmatched reliability for industries such as food processing and packaging.
Key Features:
Integrated Oil Mist Filter: Prevents oil vapor exhaust and smoking, prolonging service life
Gas Ballast: Adjustable for various condensable gas exhaust requirements
Proprietary Motor: In-house AC motor for durable, long-term performance
Technical Specifications:
Pumping Speed (60Hz): 22 m³/h (13 CFM)
Ultimate Pressure with Gas Ballast 1: 1.6 mbar (1.2 Torr)
Water Vapor Tolerance with Gas Ballast 1: 15 mbar (11 Torr)
Power Supply: 1ph, 110V 60Hz
Power Rating: 0.75 kW
IP Rating: IP54
Motor Speed (60Hz): 3440 rpm
Inlet/Outlet: G1/2″, G3/4″
Oil Capacity: 0.45 L
Noise Level (60Hz): ≤70.5 dB
Weight: 19.5 kg (43 lbs)
Dimensions (L×W×H): 317.5 × 249 × 218 mm (12.5 × 9.8 × 8.6 in)
