Description

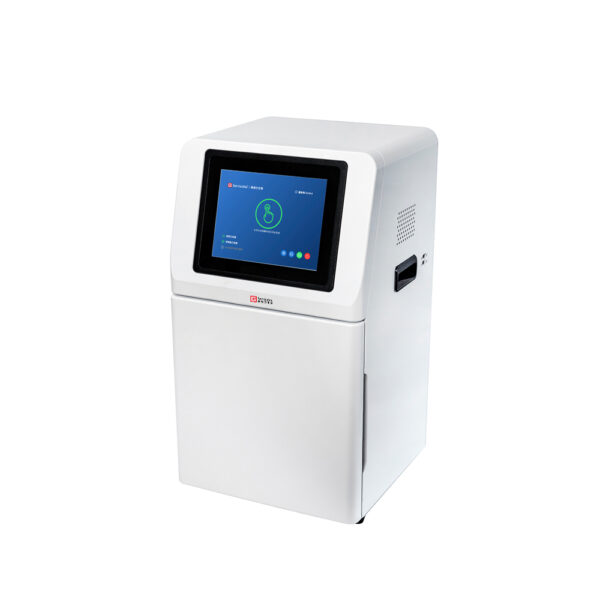

The SCG-W3000 Plus is a powerful dual-camera chemiluminescence imaging system designed to deliver fast, high-quality Western blot (WB) results—whether signals are weak or strong. Featuring both a high-sensitivity monochrome camera for band detection and a true-color camera for marker imaging, it supports simultaneous imaging of up to 10 membranes, dramatically boosting lab efficiency. Advanced functions like marker optimization, real-time exposure adjustment, and source file storage ensure precise, flexible image capture.
Specifications:
- Camera 1 Pixel Resolution: 9 million pixels
- Camera 2 Pixel Resolution: 45 million pixels
- Camera 1 Pixel Size: 3.76 × 3.76 μm
- Camera 2 Pixel Size: 2.315 × 2.315 μm
- Camera 1 Exposure Time Range: 0.1 ms – 1 hour
- Camera 2 Exposure Time Range: 17 μs – 15 seconds
- Cooling Capacity: -40°C relative to ambient temperature
- Signal-to-Noise Ratio:
-
- Camera 1: 42.2 dB (HCG), 47 dB (LCG)
- Camera 2: 40.3 dB
-
- Grayscale:
-
- Camera 1: 16-bit (65,536 levels)
- Camera 2: 8-bit (256 levels)
-
- Field of View: 136 × 136 mm (expandable to 200 × 200 mm)
